สถานที่กำเนิด: | จีน |
ชื่อแบรนด์: | BRITEC |
หมายเลขรุ่น: | BR-25M 4P |
จำนวนสั่งซื้อขั้นต่ำ: | 100 ชิ้น / ชิ้น |
---|---|
รายละเอียดการบรรจุ: | บรรจุส่งออก |
เวลาการส่งมอบ: | จัดส่งภายใน 15 วันหลังจากชำระเงิน |
เงื่อนไขการชำระเงิน: | L/C, D/A, T/T, เวสเทิร์นยูเนี่ยน |
สามารถในการผลิต: | 50,000 ชิ้น / ชิ้น เดือน |
ยี่ห้อ: | บริเทค | แบบอย่าง: | BR-25M 4P |
---|---|---|---|
ชื่อรายการ: | อุปกรณ์ป้องกันไฟกระชาก | มาตรฐานระดับ: | แบบ 1+2+3 |
ยูซี: | 275V | ไออิม: | 25kA |
เสา: | 4P | ชั้นการป้องกัน: | IP20 |
อุณหภูมิในการทำงาน: | -40 ℃—80 ℃ | วัสดุ: | เทอร์โมพลาสติก UL94-V0 |
แสงสูง: | 25KA T1 Surge Protector,Type1 4P Surge Protector,BRITEC Type 1 Surge Protection Device |

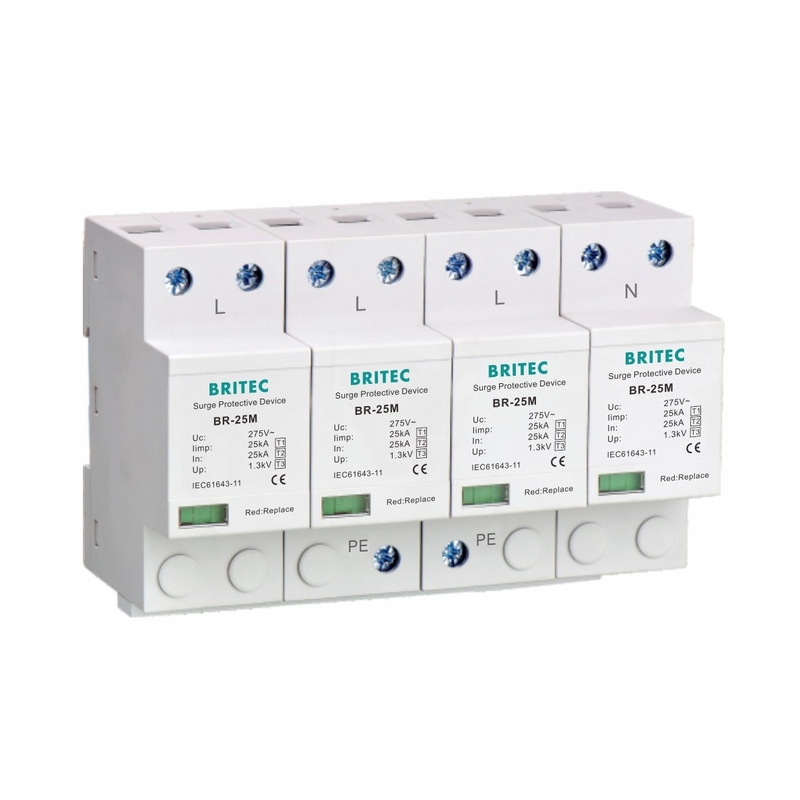

T1 Surge Protector 25KA 4P Surge Protection Device Presentation:
T1 Surge Protector 25KA 4P Surge Protection Device Technology characteristic:
BR-25M 4P | |
SPD classification according to EN61643-11 with 5M | Type 1 + Type 2 + Type 3 |
SPD classification according to IEC61643-11 with 5M | Class I + Class II + Class III |
Rated operating voltage Un | 400V |
Max. continuous operating a.c. voltage Uc | 275V |
Voltage protection level Up | ≤1.3kV |
Lightning impulse current (10/350us) Iimp | 25kA |
Nominal discharge current (8/20us) In | 25kA |
Maximum discharge current (8/20us) Imax | 100kA |
Response time tA | ≤25ns |
Cross-section area (Min.) | 4mm2 |
Cross-section area (Max.) | 35mm2 |
Max. backup fuse | 315A gG |
Operating temperature range Tu | -40℃—80℃ |
Relative humudity(25°C) | ≤95% |
For mounting on | 35mm Din rail |
Enclosure material | Thermoplastic UL94-V0 |
Dimension:
About us:
Wenzhou Britec Electric Co.,Ltd as a manufature established in year 2003, specilized in Surge arrester with more than 17 years. We are a high-tech enterprise of Zhejiang province, also passed ISO 9001.
Q1: Can the price be negotiated?
A: Yes, the price is negotiable. It can be changed according to your quantity.
Q2: Are your surge protector supported for customization?
A: Yes, of course.
Q3: How can you ensure your After-sales Service?
A: We do it in strict accordance with the contract, so that customers can buy our products with confidence.
Q4: Are you a trading company or a manufacturer?
A: We are manufacturer and exporter in the industry, so we can supply product for you with Factory Price.
