สถานที่กำเนิด: | จีน |
ชื่อแบรนด์: | BRITEC |
ได้รับการรับรอง: | TUV/CB/CE/ROHS/ISO9001 |
หมายเลขรุ่น: | TY2-30 |
จำนวนสั่งซื้อขั้นต่ำ: | 1 ชิ้น/ชิ้น |
---|---|
รายละเอียดการบรรจุ: | บรรจุส่งออก |
เวลาการส่งมอบ: | จัดส่งภายใน 15 วันหลังจากชำระเงิน |
เงื่อนไขการชำระเงิน: | L/C, D/A, T/T, เวสเทิร์นยูเนี่ยน |
สามารถในการผลิต: | 50,000 ชิ้น / ชิ้น เดือน |
ชื่อรายการ: | ความเร็วเฟสเดียว | พิมพ์: | ที2 |
---|---|---|---|
บรรจุุภัณฑ์: | กล่องบรรจุภัณฑ์ | รูปคลื่น: | 8/20 |
ใบรับรอง: | TUV CE IEC ROHS | การติดตั้ง: | รางปีกนก 35 มม. |
การรับประกัน: | 5 ปี | ประเภทของกระแส: | เครื่องปรับอากาศ |
จัดอันดับความถี่ (f): | 50/60เฮิร์ต | การชำระเงิน: | Paypal.TT.Western Union |
แสงสูง: | Type 2 Surge Protection Device 275V,Single Phase Spd Type2 Surge Protector,60Hz Spd Type 2 Surge Protector |

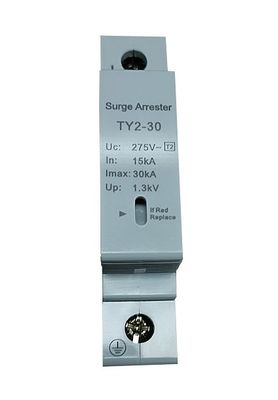

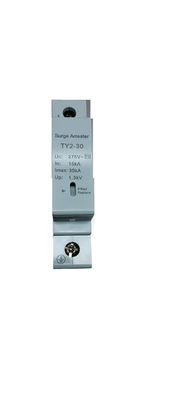

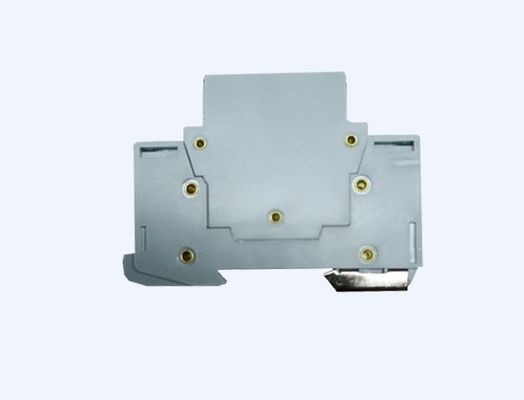

275V surge voltage protector tvss spd Type 2 surge arrester
Type 2 surge arrester Features:
Products features:
1. Pluggable module, easy for installation and maintenance
2. High discharge capacity, quick response
3. Double thermal disconnection devices, providing more reliable protection
4. Green window will change when fault and also provide remote alarm control at the same time
Type 2 surge arrester Technology characteristic:
TY2-30 | |
Max. continuous operating a.c. voltage Uc | 275V |
Nominal discharge current (8/20us) In | 15kA |
Maximum discharge current (8/20us) Imax | 30kA |
Voltage protection level Up | ≤1.3kV |
Response time tA | ≤25ns |
Max. backup fuse | 125A |
Operating temperature range Tu | -40℃—80℃ |
Cross-section area (Min.) | 4mm2 |
Cross-section area (Max.) | 35mm2 |
For mounting on | 35mm Din rail |
Enclosure material | Thermoplastic UL94-V0 |
Test standards |
IEC 61643-11, EN 61643-11 |
AC SPD Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Type 2 surge arrester Application:
Application from 1 to 4 poles
Protection against surge and overvoltage spikes
Good protection level
High discharge capacity
CB, CE, TUV,RoHS Certificate:
Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. Our company specialized in research and development of surge protection devices.The series of surge protection device Type 1 and Type 2 and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.
.
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in orthopedic and sport products. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
Q: Which payment form you can accept?
A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
